Dual linear power supply

Lineo5 Duo

Two independent 5 V outputs, so one linear supply can power two devices.

Buy in the shop, Lineo5 Duo Check compatibility Find a dealer

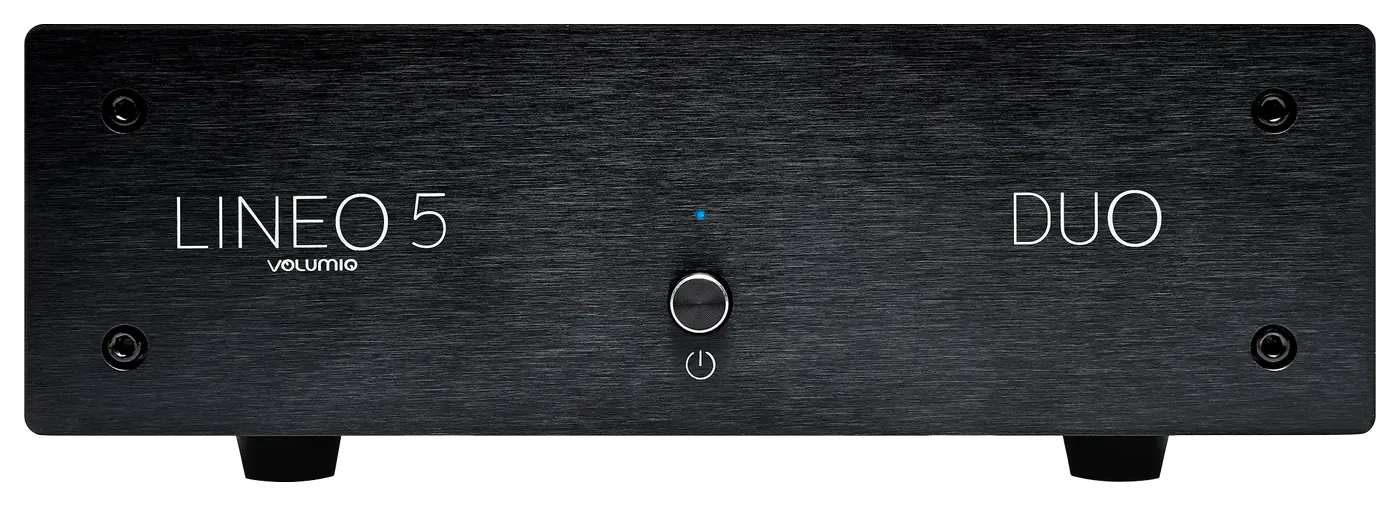

Volumio Lineo5 Duo from the front: the same black aluminum case as Lineo5, with DUO printed on the right.

One device to power? Lineo5 has one 5 A output.

Discover Lineo5 Compare the two

The highlights

2 × 5V DCtwo independent outputs, to power two devices at once
2 × 4Amaximum current, on each of the two outputs
20µVresidual noise
40,000µFbulk capacitance, from audio-grade low-ESR capacitors
Lineardual regulation, fed by a toroidal transformer
6Volumio models it works with, two at a time, plus any other 5 V audio gear

Reviews

No reviews yet

There are no independent reviews of Lineo5 Duo yet.

Reviewers and owners have written about Lineo5, the model with one output.

Read the reviews of Lineo5

What it does

Cleaner power for 5 V gear

Lineo5 Duo takes the place of the external switching power supplies that run two of your devices, such as a streamer and a DAC. Its linear design gives each of them clean, stable 5 V power.

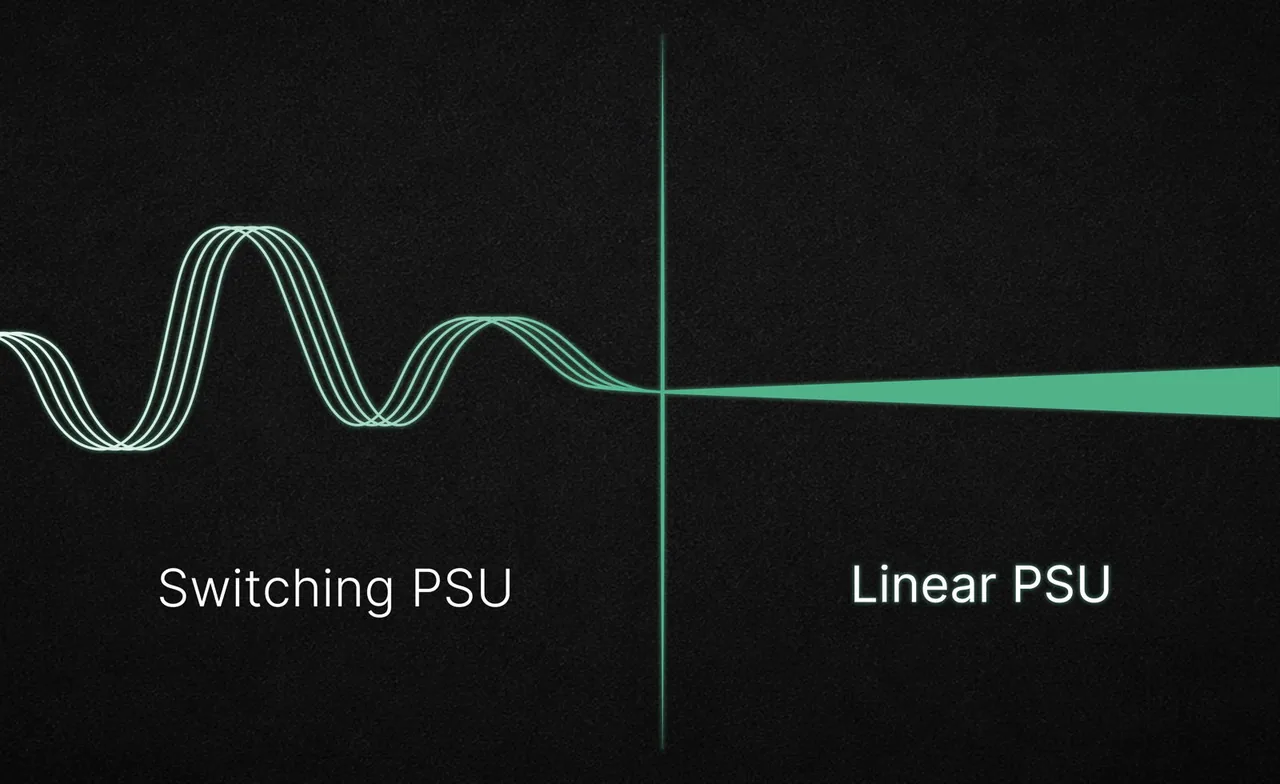

An illustration in two halves. On the left, labelled Switching PSU, a wavy line. On the right, labelled Linear PSU, a straight, steady band.

A switching supply and a linear supply.

A linear supply

A linear power supply holds a large reservoir of clean, stable power and keeps electrical noise low. Power delivery stays consistent, so you hear more of the detail and the transients in your music.

Less ripple and interference

Linear regulation and filtering reduce ripple and interference. Each output of Lineo5 Duo has its own regulators and filtering, and the residual noise is 20 µV.

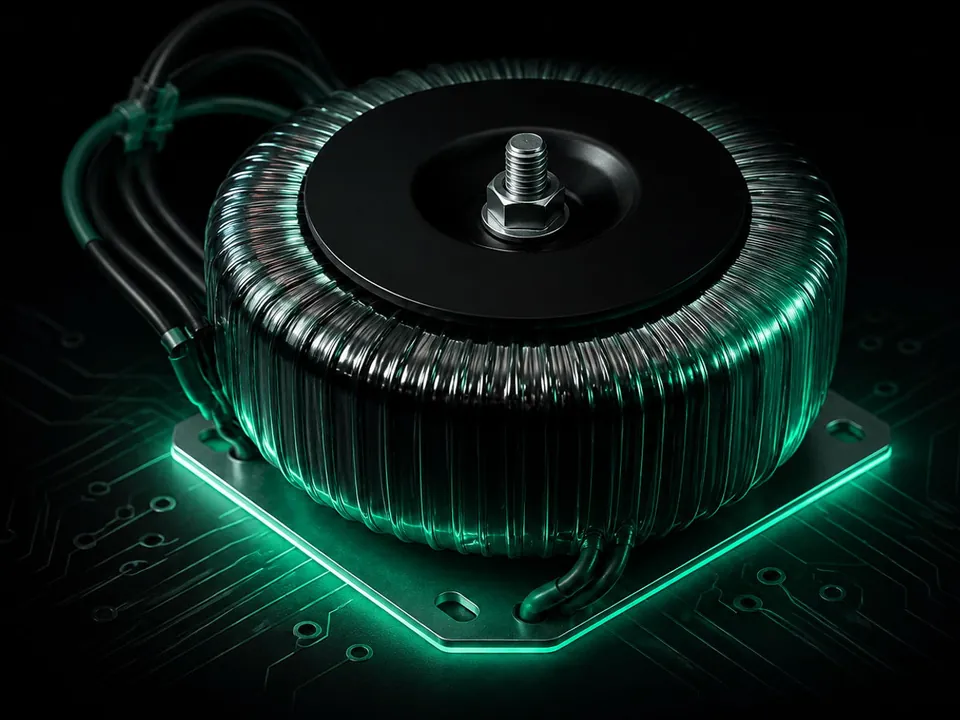

A toroidal transformer

A toroidal transformer sits at the heart of Lineo5 Duo. It delivers the power each output needs with a wide margin, so it never comes close to its limits, even in the most demanding listening sessions.

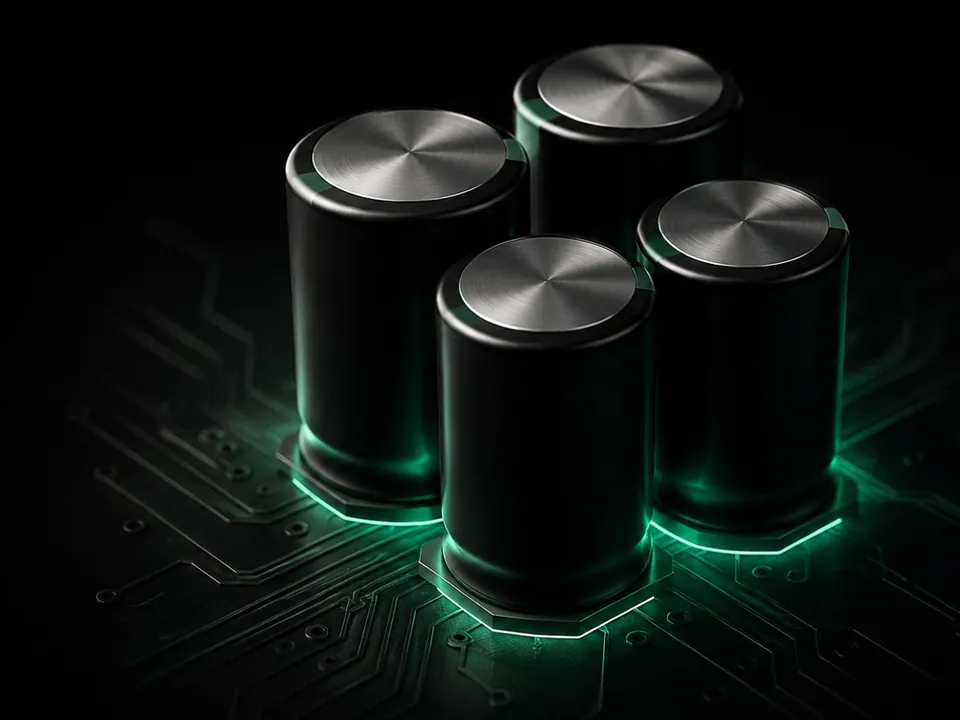

A render of four cylindrical capacitors with brushed metal tops on a circuit board, lit green from below.

Audio-grade capacitors

Lineo5 Duo uses audio-grade, low-ESR capacitors with 40,000 µF of bulk capacitance, a large reservoir of power for the moments your system needs it most.

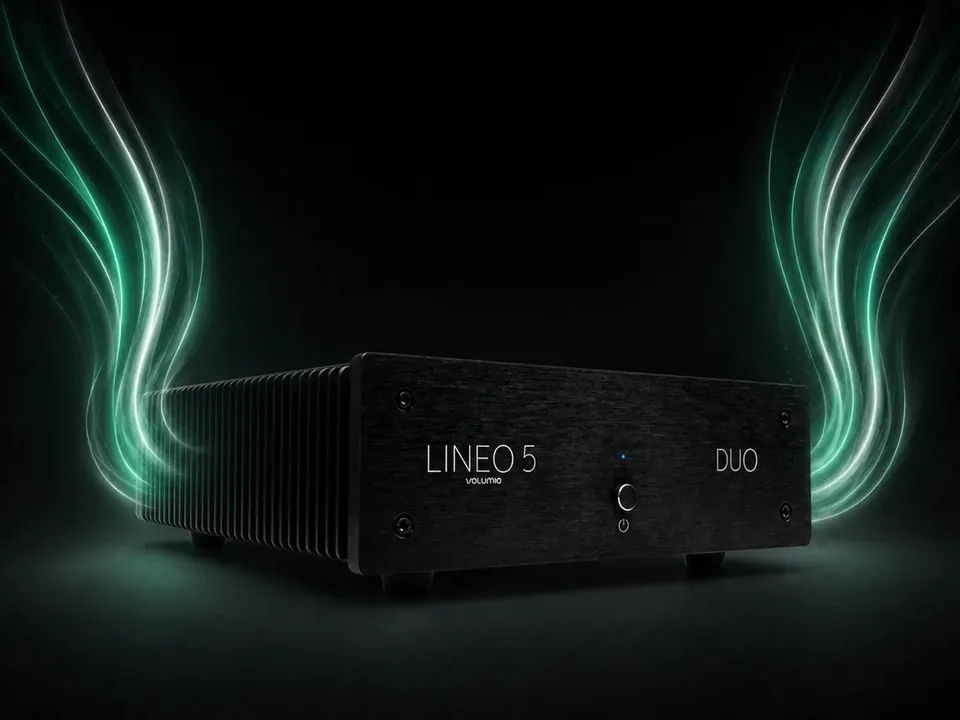

A render of Lineo5 Duo on a dark ground, with heatsink fins along its side and green light trails rising behind it.

Aluminum, cooled passively

A simple, honest design. The chassis is aluminum, a robust and non-magnetic material, and the heatsinks along its sides cool the electronics passively.

110 or 220 V
A switch on the back sets the mains input: 110–120 V at 60 Hz, or 220–240 V at 50 Hz.
An easy-to-reach fuse
A fuse protects Lineo5 Duo, and it is easy to reach.
For 5 V audio gear
Stable, clean power for high-end DACs, headphone amplifiers and network streamers that run on 5 V.

Compatibility

Will it power your device?

Pick your device to see if Lineo5 Duo can power it. Lineo5 works with the same devices.

Your device

Primo Plus

Lineo5 DuoCompatible

Discover Primo Plus

Primo V3

Lineo5 DuoCompatible

Discover Primo V3

Primo V2

Lineo5 DuoCompatible

Discover Primo V2

Motivo

Lineo5 DuoNot compatible

Rivo

Lineo5 DuoCompatible

Discover Rivo

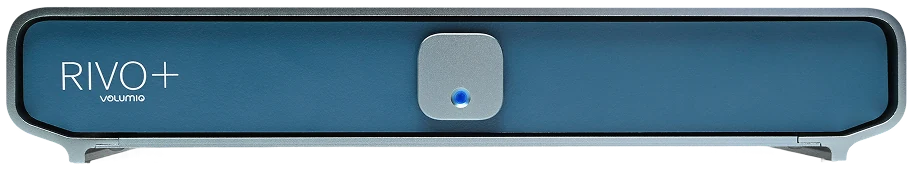

Rivo Plus

Lineo5 DuoCompatible

Discover Rivo Plus

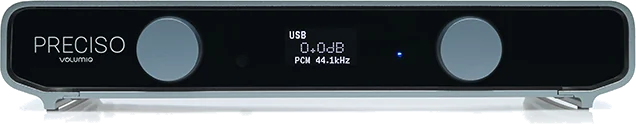

Preciso

Lineo5 DuoCompatible

Discover Preciso

Integro

Lineo5 DuoNot compatible

Other 5 V gear

Lineo5 DuoCheck your device

Lineo5 Duo is made for 5 V audio gear. Each of its two outputs gives 5 V DC, tip positive, through a cord that ends in a 5.5 × 2.1 mm barrel jack, with up to 4 A. Compare that with your device’s power input.

Lineo5 Duo

Compatible: Primo Plus
Primo V3
Primo V2
Rivo
Rivo Plus
Preciso
Not compatible: Motivo
Integro

Lineo5

Works with the same devices.

See Lineo5

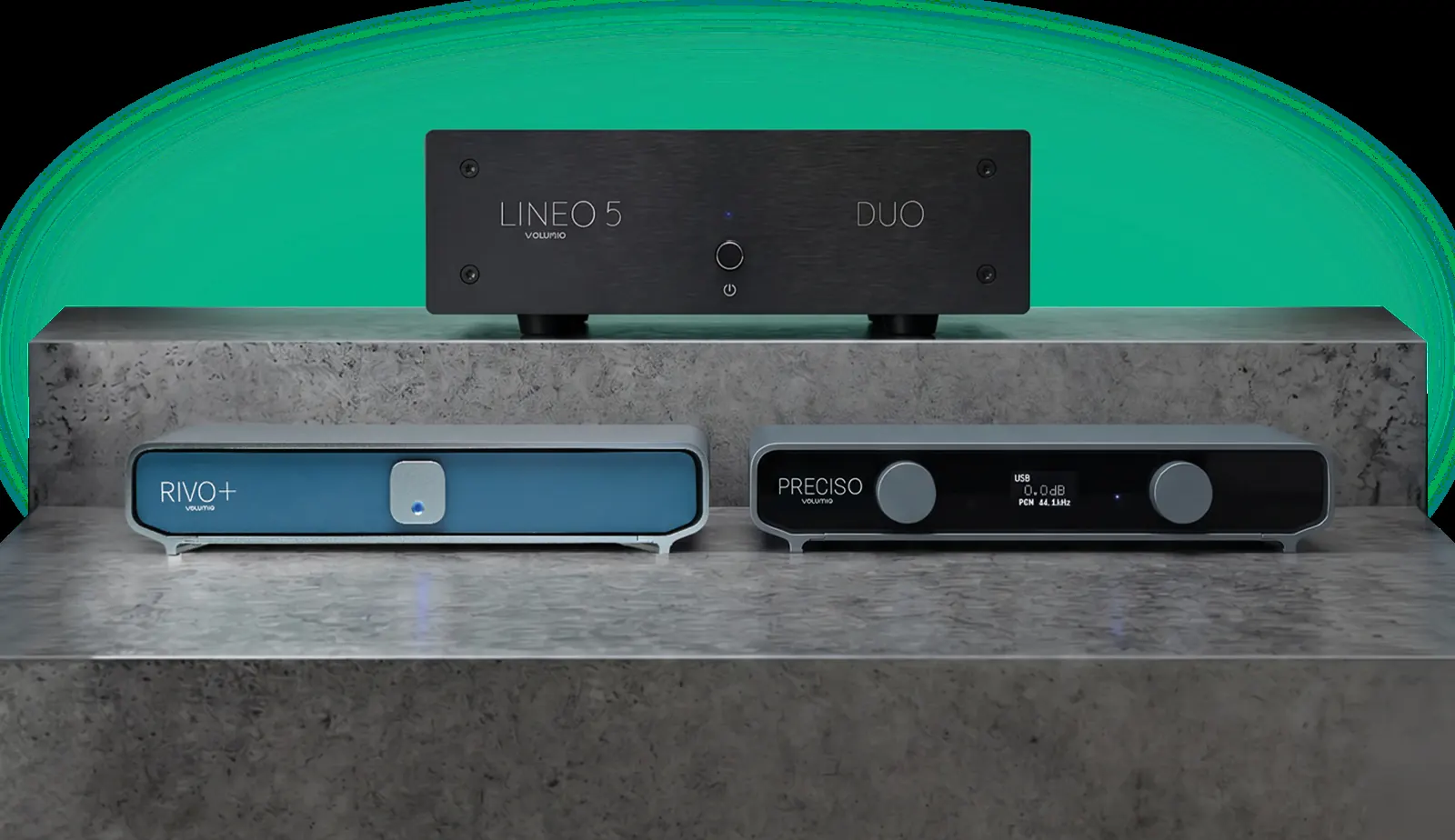

Lineo5 Duo on a concrete block, with Rivo Plus and Preciso side by side on the step below and a green arc of light behind.

Lineo5 Duo with Rivo Plus and Preciso. Its two independent outputs can power two devices like these at the same time.

Compare

Lineo5 Duo or Lineo5

Both are linear 5 V supplies with a toroidal transformer, in the same 27.1 × 22.7 × 7 cm aluminum chassis, and they work with the same devices. Lineo5 has one output with up to 5 A. Lineo5 Duo has two independent outputs with up to 4 A each, so one supply can power two devices.

Lineo5
One output, up to 5 A
Buy in the shop, Lineo5 Discover Lineo5
Lineo5 Duo
Two independent outputs, up to 4 A each
Buy in the shop, Lineo5 Duo

Maximum current per output, in Ampere

Lineo5: 5 A
Lineo5 Duo, output 1: 4 A
Lineo5 Duo, output 2: 4 A

Outputs: Lineo5: 1; Lineo5 Duo: 2, independent, each with its own regulators and filtering
Output current: Lineo5: Up to 5 A; Lineo5 Duo: Up to 4 A on each output
Regulation: Lineo5: Linear; Lineo5 Duo: Dual linear
Power consumption: Lineo5: Up to 90 W; Lineo5 Duo: Up to 120 W
In the box: Lineo5: 4 AC power cables (EU, US, UK, AU/NZ) and 1 output cable; Lineo5 Duo: 4 AC power cables (EU, US, UK, AU/NZ) and 2 output cables

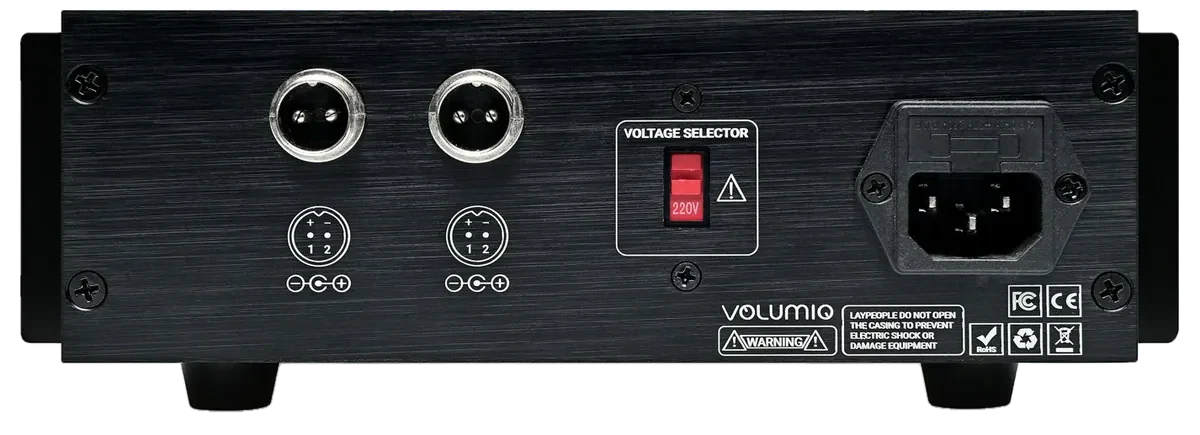

On both: 5 V DC, tip positive, from GX-16 sockets with 2 pins, and output cords that end in a 5.5 × 2.1 mm barrel jack. Mains input of 110–120 V at 60 Hz or 220–240 V at 50 Hz, set with a switch. A toroidal transformer, audio-grade low-ESR capacitors with 40,000 µF of bulk capacitance, filtering that reduces ripple and interference, 20 µV of residual noise, and an easy-to-reach fuse. An aluminum chassis with heatsinks, 27.1 × 22.7 × 7 cm. Compatible with the same devices.

The Volumio experience

Made for the Volumio experience

Lineo5 Duo gives cleaner power to Volumio streamers such as Rivo and Primo. They run Volumio OS: one player for all your music, on every screen in your home.
